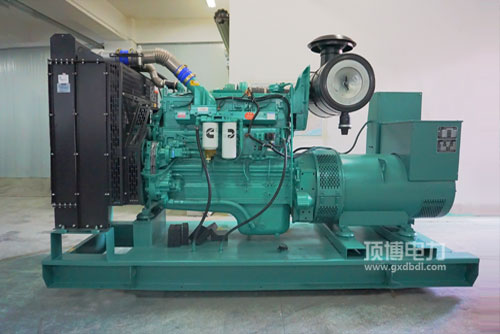

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用发起机汽柴油市场合理性好: 较为先进的汽柴油控住模式，特有的STC、ESTC 分级制度控住模式，特定开发的活塞件最上层进行燃燒仓，直流电喷射式汽柴油，更加彻底做雾化，进行燃燒更加彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用起行为瞬态性市场大的: 精致的起行为整体性方案，互相配合康明斯独家的EFC设备，的控制定位精更高，崩溃准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用起驱动力升最大功率高: 整体上制定紧凑型轿车.性能布置设计合理性，启用平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50满意国内 非的道路最后阶段中，及美国Tier2. Tier 3废气排放法律需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件而犯性好， 汽车发心理程序运行及运维养护等快速，投资成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率使用范围 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯电站用起行为的特征：比热容小， 挤压比低， 格栅价格气氛升温，最易初始化，移動车载影音24v电源的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起因素型号规格	长用工作效率(kW)Prime Power	预留马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
